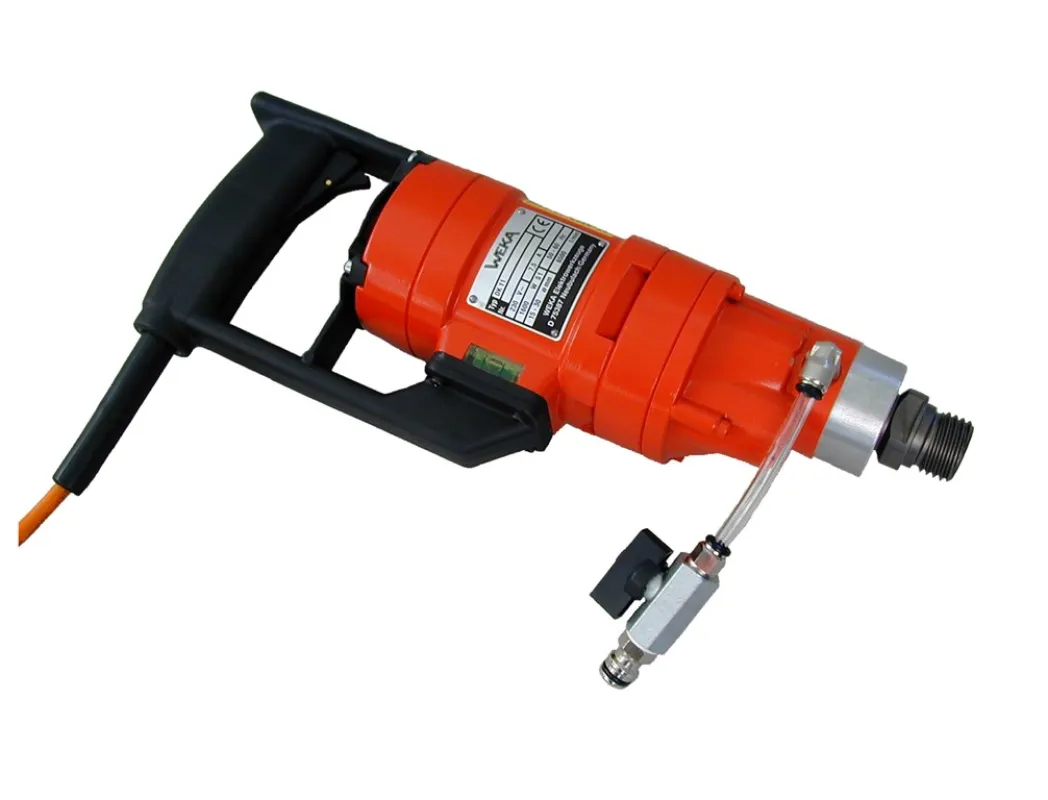

Piéce détachée pour moteur de carottage WEKA : DK12 / DK14 / DK16 / DK18


  • Pièce pour moteur WEKA
  • DK12 / DK14 / DK16 / DK18






Référence FIG NO DESCRIPTION_EN DESCRIPTION_FR STANDARD TYPE PART NO Tarif Public € HT
Commander
DK10101 1 1 Motor case boitier moteur DK10101

94.59 € HT

DK20620 1 Pointing Sticker DK20620

2.13 € HT

9012001 1 Gear Oil 130 ml 9012001

1.50 € HT

DK10810 1 Carrying Case DK12/16 DK10810

56.25 € HT

DK10102-1 2 1 Intermediate Flange capot intermediare DK10102-1

50.49 € HT

DK10103 3 1 Motor Top Hood w. Insulation Ring DK10103

47.94 € HT

DK12105/11 5 1 Switch handle 110 V DK12/16 DK12105/11

24.29 € HT

DK12105 5 1 Switch Handle poign 230 V DK12/16 DK12105

24.29 € HT

DK10106 6 1 Insulation Ring DK10106

7.03 € HT

DK10510 7 1 Electronic Module platine electronique 230V DK12/14 DK10510

30.68 € HT

DK10510/11 7 1 Electronic Module platine electronique 110V DK12/14 DK10510/11

30.68 € HT

DK16510 7 1 Electronic Module platine electronique 230V DK16/18 DK16510

32.50 € HT

DK16510/11 7 1 Electronic Module 110V DK16/18 DK16510/11

32.50 € HT

DK16108/11-1 8 1 Armature with Fan and bearings induit complet 110V DK16/18 DK16108/11-1

200.00 € HT

DK16108-1 8 1 Armature with Fan and bearings induit compet 230V DK16/18 DK16108-1

200.00 € HT

DK10108/11-1 8 1 Armature with Fan and Bearings induit complet 110V DK12/14 DK10108/11-1

168.00 € HT

DK10108-1 8 1 Armature with Fan and Bearings induit complet 230V DK12/14 DK10108-1

168.00 € HT

DK10109 10 1 Field inducteur 230V DK12/14 DK10109

103.54 € HT

DK10109/11 10 1 Field inducteur 110V DK12/14 DK10109/11

103.54 € HT

DK16109 10 1 Field inducteur 230V DK16/18 DK16109

105.00 € HT

DK16109/11 10 1 Field inducteur 110V DK16/18 DK16109/11

105.00 € HT

DK16214 11 1 Slide Gear Wheel DK16/18 DK16214

60.00 € HT

DK16520/11 12 1 Electronic module completely sealed platine electronique 110V DK16/18 DK16520/11

45.63 € HT

DK10520 12 1 Electronic module completely sealed platine electronique etanche 230V DK12/14 DK10520

45.00 € HT

DK16520 12 1 Electronic module completely sealed platine electronique 230V DK16/18 DK16520

45.63 € HT

DK10520/11 12 1 Electronic module completely sealed platine electronique 110V DK12/14 DK10520/11

45.00 € HT

DK10135 13 1 Electronic Case boitier pour platine electronique 230 V DK10135

12.14 € HT

DK10116 14 2 Field screw insulating sleeve DK10116

2.49 € HT

DK10117 15 1 Brush Holder Disc support charbons complet DK10117

20.45 € HT

DK10118 16 1 Air Conducting Disc DK10118

2.38 € HT

DK10122 18 1 Terminal Case Packing joint etancheite DK10122

1.15 € HT

DK14130 23 1 Terminal Case boitier DK14/18 DK14130

18.54 € HT

DK14135 24 1 Terminal Case Cover socle de boitier DK14/18 DK14135

11.50 € HT

DK10125 25 2 Carbon Brush charbons 230 V DK10125

4.21 € HT

DK10125/11 25 2 Carbon Brush charbons 110 V DK10125/11

4.21 € HT

DK10140 26 1 Cooling Profile profil DK10140

4.79 € HT

6060011 28 1 Ball Bearing roulement 6060011

6.84 € HT

6060002 29 1 Ball Bearing roulement 6060002

6.84 € HT

2628171 30 1 Compensation Washer bague 2628171

0.64 € HT

4526025 32 1 O-Ring joint o ring RDR26x2,5 4526025

0.45 € HT

5012247 34 1 Rotary Shaft Seal joint eancheite RWD12x24x7 5012247

6.63 € HT

504006 36 2 Th. Roll. Cheese Head Screw vis M4x6 504006

0.25 € HT

105035 37 4 Hex. Soc. Head Screw vis m5 M5x35 105035

0.25 € HT

205025 38 4 Hex. Soc. Head Screw vis m5 M5x25 DK12/14 205025

0.25 € HT

204100 39 2 Fill. Head Screw visM4 M4x100 204100

0.96 € HT

203005 40 2 Fill. Head Screw vis M4 M3x5 203005

0.19 € HT

405016 41 1 Countersunk Head Screw vis 6 pans M5x16 DK14/18 405016

0.19 € HT

304006 42 1 Sl. Pan Head Screw vis t M4x6 304006

0.19 € HT

539095 43 2 Pan Head Tapping Screw vis DK12/14 539095

0.19 € HT

539019 44 2 Pan Head Tapping Screw vis DK12/14 539019

0.19 € HT

205050 47 2 Raised Cheese Head Screw vis M5x50 DK14/18 205050

0.25 € HT

1004000 48 2 Hexagon Nut ecrou M4 1004000

0.19 € HT

2223004 49 4 Round Head grooved Pin 2,3x4 2223004

0.13 € HT

1805000 52 4 Locking Washer rondelle SM5 1805000

0.06 € HT

1804137 54 1 Curved Spring Washer rondelle A4 1804137

0.06 € HT

1804433 55 1 Medium Washer 4,3x8x0,5 Ms 1804433

0.06 € HT

1803433 56 2 Medium Washer 3,2x6x0,5 Ms 1803433

0.06 € HT

1804125 57 2 Medium Washer 4,3x9x1 Ms 1804125

0.13 € HT

DK10130 58 1 Interference Suppression Capacitor condensateur DK10130

4.54 € HT

8715152 60 1 Cord G1,5x1,5 for PRCD 8715152

15.00 € HT

8738151 61 1 Cord G1,5x3,8 cable pour PRCD avec prise for CEE plug 8738151

26.25 € HT

8740141 61 1 Cord 3AWG14x4 for USA 8740141

16.61 € HT

8723151 61 1 Cord G1,5x2,3 cable pour prcd sans prise for PRCD 8723151

18.75 € HT

8738251 61 1 Cord G2,5x3,8 cable pour PRCD 110V DK16/18 8738251

25.00 € HT

8701000 62 1 Cord Sleeve gaine de cable etanche DK12/16 8701000

2.36 € HT

8804020 63 1 Cord Gland visserie de c DK14/18 8804020

3.50 € HT

8800010 64 1 Cord Clamping Piece pince pour c DK12/16 8800010

0.58 € HT

8015212 65 1 Motor Switch contacteur marche arr DK12/16 8015212

18.54 € HT

8015014 66 1 Motor Switch contacteur marche arr 230 V DK14/18 8015014

43.13 € HT

8015514 66 1 Motor Switch contacteur marche arr 110 V DK14/18 8015514

33.24 € HT

8010615 67 1 Motor Protective Switch 110 V DK12/16 8010615

18.54 € HT

7510029 70 1 Tube Water-Level 7510029

2.38 € HT

7500015 71 1 Tin Water-Level 7500015

3.50 € HT

DK20105 73 1 Fan ventilateur DK20105

8.95 € HT

8016013 80 1 Mains Plug prise schuko 16 A 8016013

8.63 € HT

8016001 80 1 Mains Plug CEE-16A-1h prie Ce 16 A 8016001

11.50 € HT

8400110 1 PRCD Inline Protector 10 mA 110 V 8400110

86.25 € HT

8400010 85 1 PRCD Inline Protector PRCD 10 mA 230 V 8400010

86.25 € HT

DK10201 100 1 Gear Box DK10201

108.65 € HT

DK12202 101 1 Clamp Ring DK12/16 DK12202

26.25 € HT

DK10221 103 1 Bearing Socket DK10221

3.84 € HT

DK10203 104 1 Gear Change Grip DK10203

18.63 € HT

DK20205 105 1 Gear Change Lever DK20205

7.80 € HT

DK10206.3 106 1 Tool Thread 1 1/4" + G 1/2" DK10206.3

90.75 € HT

DK10206 106 1 Drilling Spindle cpl. with Pos. 114,135,137, Tool Thread G 1/2" DK10206

84.36 € HT

DK10206.4 106 1 Tool Thread 32 mm square DK10206.4

90.75 € HT

DK10208 107 1 Pinion Shaft DK12/14 DK10208

77.98 € HT

DK16208 107 1 Pinion Shaft DK16/18 DK16208

80.00 € HT

DK12209 108 1 Clutch Wheel DK12209

23.65 € HT

DK10212 109 1 Gear Wheel 1 DK12/14 DK10212

43.84 € HT

DK16212 109 1 Gear Wheel 1 DK16/18 DK16212

45.00 € HT

DK16213 110 1 Gear Wheel 3 DK16/18 DK16213

35.00 € HT

DK10213 110 1 Gear Wheel 3 DK12/14 DK10213

33.55 € HT

DK10214 111 1 Slide Gear Wheel DK12/14 DK10214

58.61 € HT

DK10218 112 2 Brake Disk DK10218

3.14 € HT

DK10219 113 1 Pressure Disk DK10219

6.33 € HT

DK10220 114 2 Protective Sleeve DK10220

4.21 € HT

DK20225 115 1 Quick Connect Nipple DK20225

6.90 € HT

8900014 116 1 Handle DK12/16 8900014

12.14 € HT

6062900 118 1 Ball Bearing 629 6062900

5.30 € HT

6060052 119 1 Ball Bearing 6005 2RS 6060052

9.59 € HT

6310100 120 2 Needle Bush HK1010 6310100

5.30 € HT

5578002 123 1 O-Ring RDR78x2 5578002

0.96 € HT

5520003 124 1 O-Ring RDR20x3 5520003

0.33 € HT

5511025 125 1 O-Ring RDR11x2,5 5511025

0.33 € HT

5024407 127 2 Rotary Shaft Seal AD24x40x7 5024407

4.21 € HT

5022357 128 1 Rotary Shaft Seal AD22x35x7 5022357

3.64 € HT

7014001 130 1 Ball Valve G1/4"i/i 7014001

9.88 € HT

7014002 131 1 Douple Nipple G1/4"a 7014002

1.66 € HT

7014003 132 3 Sealing Ring G1/4 7014003

0.13 € HT

4028142 134 1 Disk Spring 4028142

3.00 € HT

4305016 135 1 Pressure Spring 0,5x3,2x16 4305016

0.70 € HT

2204000 137 1 Ball RB-4 2204000

0.25 € HT

3005040 140 1 Parallel Key A5x5x40 3005040

0.45 € HT

2505015 141 1 Parallel Pin 5m6x15 2505015

0.25 € HT

2504010 142 1 Parallel Pin 4m6x10 2504010

0.31 € HT

2503016 143 1 Parallel Pin 3m6x16 2503016

0.25 € HT

1910161 145 1 Shim Ring PS10x16x1 1910161

0.19 € HT

DK10204 146 1 Supporting Ring DK10204

3.06 € HT

1925403 147 1 Shim Ring PS25x40x0,3 1925403

1.00 € HT

3514001 148 1 Retaining Ring AV14 3514001

0.50 € HT

3618000 149 1 Retaining Ring SW18 3618000

0.38 € HT

3525012 150 1 Retaining Ring 25x1,2 3525012

0.38 € HT

3447175 151 1 Retaining Ring 47x1,75 3447175

0.88 € HT

1012015 153 1 Hexagon Nut BM12x1,5 1012015

0.51 € HT

105080 155 1 Hex. Soc. Head Screw M5x80 105080

0.75 € HT

105050 156 3 Hex. Soc. Head Screw M5x50 105050

0.45 € HT

105012 157 1 Hex. Soc. Head Screw M5x12 105012

0.19 € HT

506040 158 1 Wing Screw M6x40 DK12/16 506040

1.00 € HT

1805000 160 5 Locking Washer SM5 1805000

0.06 € HT

1806125 162 1 Medium Washer A 6 DK12/16 1806125

0.06 € HT
